6.4T 1U Platform

6.4T 1U Platform

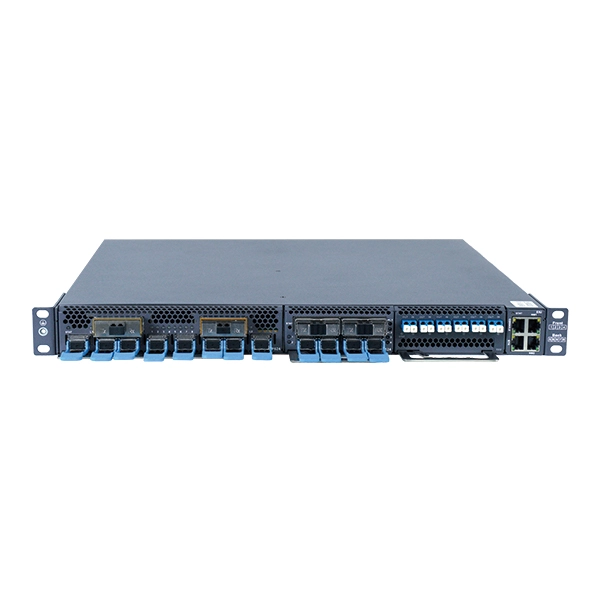

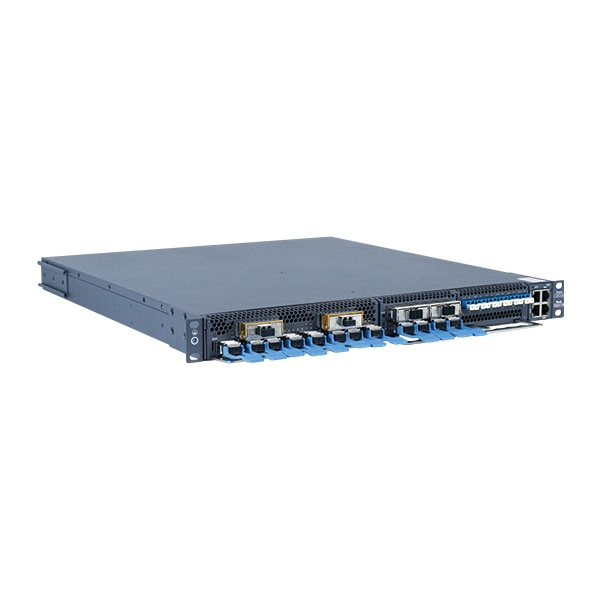

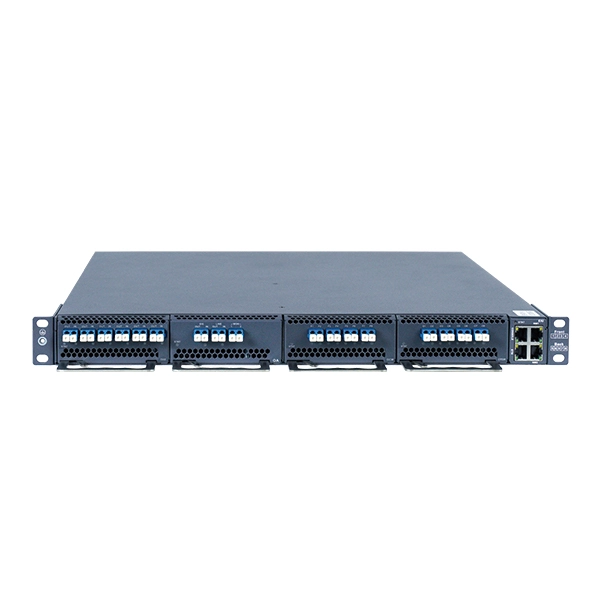

6.4T 1U DCI/OTN Platform
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1

OTNS8600-DCI4 is an optoelectronic integrated WDM transmission platform designed for Data Centre Interconnect (DCI) by Guangzhou Sintai Communication Co., Ltd, features high integration (optoelectronic integration), large bandwidth (25.6Tbits / Fiber), simple deployment (no complicated tuning), easy operation and maintenance (CLI /Web LCT / SNMP/ NETCONF /NMS) and safety and reliability. It can meet the rapidly growing bandwidth demand between DCs, achieve flexible deployment of equipment, create an open optical network architecture and lead the DCI market into a new era of high-speed all-optical interconnection.

6.4T 1U Platform PDF Download Contact Us

Products
Blog

Features of 6.4T 1U DCI/OTN Platform

  • Adopt optoelectronic integrated, pluggable modular design; components support hot-plugging, deploy and expand on demand.

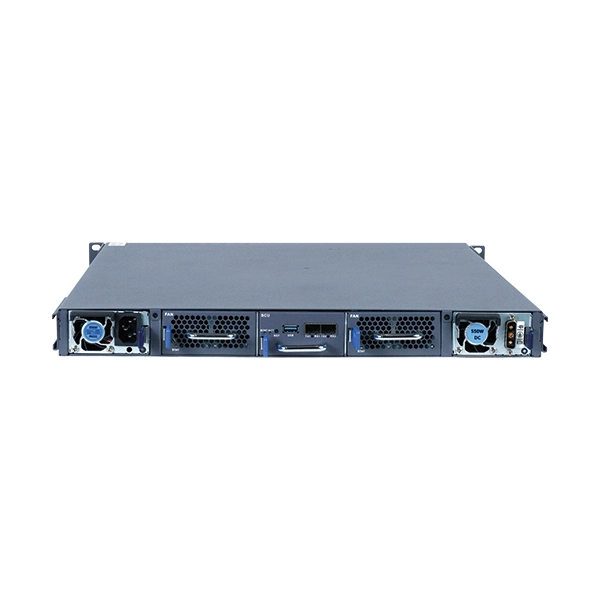

  • Front-air and rear-air cooling design,1+1 FRU fan units available, automatic speed adjustment supported.

  • 19" / 800mm depth cabinet can be installed, suitable for data center rooms and can be deployed with IT equipment in common cabinets.

  • Transmission capacity up to25.6Tbit/s@Ultra-wide C-band 400G*80λ/800G*40λ, up to 6.4Tbit/s per subrack.

  • Single wave capacity up to 800G, continuous evolution towards 1.2T&1.6T.

  • Optical layer card highly integrated with OA, WSS, VOA, OSC, OTDR, OCM, OLP, etc. to simplify internal fiber connectivity.

  • Supports 10GE, 25GE, 40GE,100GE, 100GE FlexE (Unware), 400GE, STM-64, 10GE WAN, FC800, FC1600, FC3200, OTU2, OTU2e, OTU4 and other service access.

  • Supports 9-degree ROADM networking and FlexGrid.

  • Supports comprehensive performance monitoring and quality visibility at the service, OTN and optical layers.

  • Provides multiple multi-layer network-level and device-level protection solutions. Protection reversal delay＜50ms, ensuring superior protection  performance.

  • Supports NETCONF/YANG standard open interface and GUI management platform based on B/S architecture,CLI, Web LCT, SNMP.



Specifications of 6.4T 1U DCI/OTN Platform

Parameter

Description

Chassis

Dimensions (H x W x D)

1U: 44 mm (H)×444 mm (W)×490 mm (D)

Maximum capacity

6.4Tbit/s

Number of service card slots

4

Applicable cabinets

19'' cabinet 800mm or deeper

Line-side port

Rate

  • 100G (PDM_QPSK) programmable

  • 200G (PDM_QPSK) programmable

  • 200G (PDM_8QAM) programmable

  • 200G (PDM_16QAM) programmable

  • 300G (PDM_8QAM) programmable

  • 400G (PDM_16QAM) programmable

  • 800G(PDM_16QAM)

Optical module

Pluggable QSFP28 / QSFP-DD / CFP2/OSFP, wavelength adjustable

Client-side port

Service type

10GE, 25GE, 40GE, 100GE, 100GE FlexE(Unware) , 400GE, STM-64, 10GE_WAN, FC800, FC1600, FC3200, OTU2, OTU2e, OTU4

Optical module

Pluggable SFP+ / SFP28 / QSFP28 / QSFP-DD

Optical power management

ALS, AGC

Max. number of wavelengths

Fixed grid: 120 wavelengths @50 GHz

Channel spacing

Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz

Flexible grid: 6.25GHz slice

Central frequency range

190.7THz ~ 196.65THz

Central wavelength range

1524.5nm ~ 1572.06nm

Protection function

  • Optical line protection (OLP)

  • Optical multiplexed segment protection (OMSP)

  • Optical channel protection (OCHP)

  • Line-side port 1+1 protection (only P422 muxponder support)

Network management

  • Support hot swap of main control board(SCU)

  • Support CLI, Web LCT, SNMP, NETCONF, GUI management platform based on B/S architecture

  • Support DCN communication based on OSC

Power supply

Back-up

Standard CRPS power supply 1+1 backup

AC

  • Rated voltage range: 100 V AC～130 V AC (50/60Hz) or 200 V AC～240 V AC (50/60Hz)

  • Max. voltage range: 90 V AC～264 V AC (45Hz~65Hz)

HVDC

  • Rated voltage range: 2-40 V HVDC

  • Max. voltage range: 192 V HVDC～288 V HVDC

DC

  • Rated voltage range: -48 V DC/-60 V DC

  • Max. voltage range: -40 V DC～-72 V DC

Heat dissipation

  • Front inlet air and rear outlet air

  • 1+1 Fan unit backup

Typical power consumption

<550W (Electrical layer full match)

Environment

Operating temperature

Short-term: -5℃～+45℃; Long-term: 0℃～40℃

Storage temperature

-40℃～+70℃

Humidity

5%～95% (no condensation)
