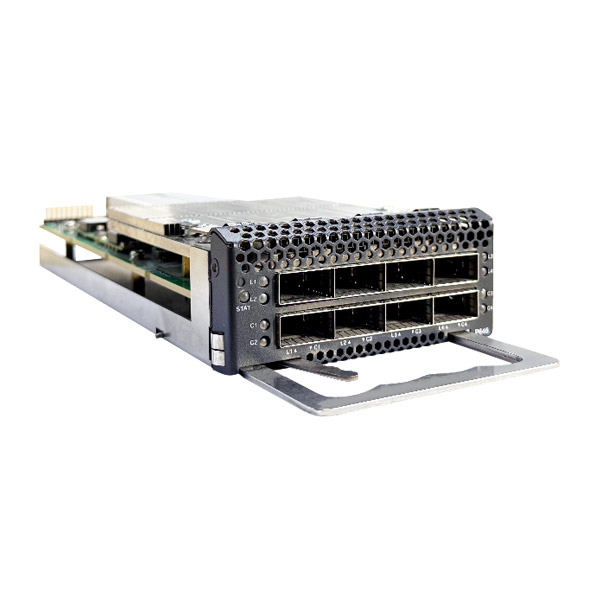

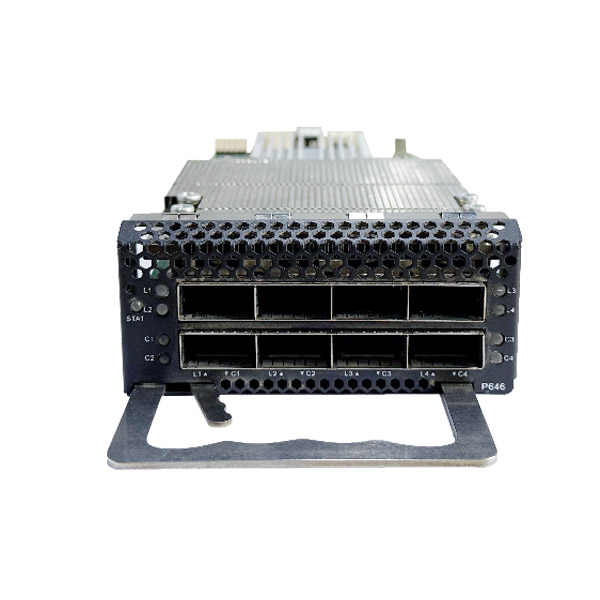

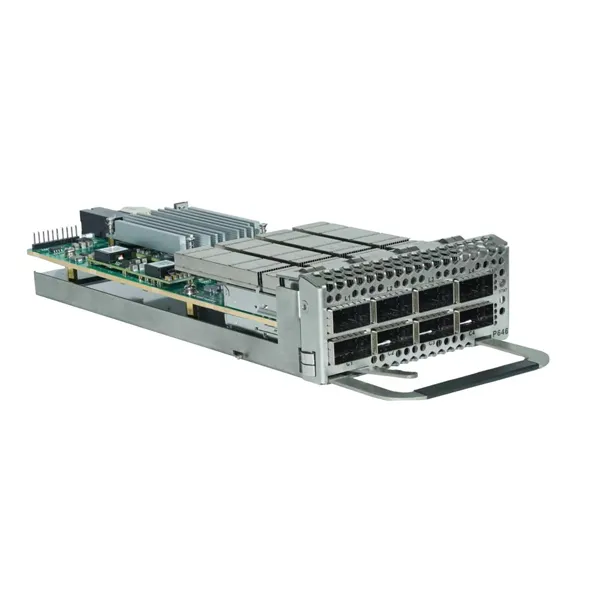

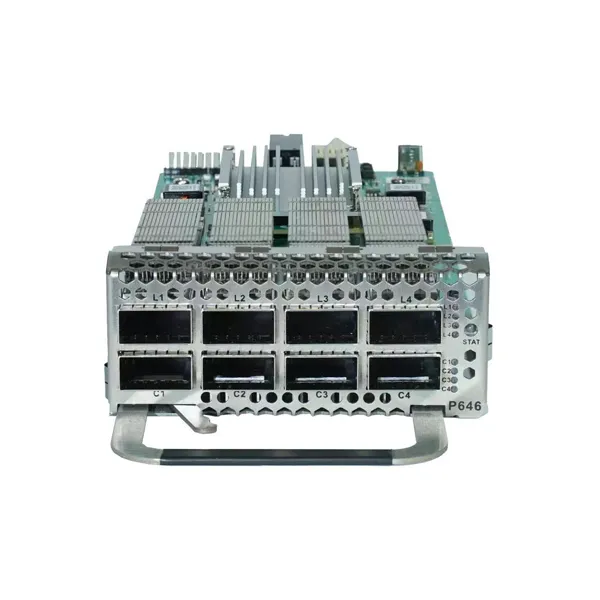

The 4*400G Muxponder service board (P646) launched by Sintai Communication provides four 400G independent transmission channels and supports a maximum transmission capacity of 1.6Tbps. The client-side is compatible with 100GbE and 400GbE services. The line-side uses standard 400G QSFP-DD pluggable coherent optical modules, providing a large-capacity, high-performance, cost-effective optical transmission solution.
PDF Download
Contact Us
Suitable for metropolitan area networks and long-distance network transmission up to 450km
Suitable for large-capacity DCI network transmission in enterprises, campuses, cloud computing, etc.
400G links for existing OTN /DWDM infrastructure
| 4*400G Muxponder (P646) | |
| Occupied slot | 1 slot |
| Line-side |
|
| Client-side | 4 QSFP-DD optical ports are pluggable |
| Supported service types | 400GbE, 100GbE (Breakout) |
| Loopback | Support inner loop and outer loop on line-side and client-side |
| LLDP | Receive mode only |
| ALS | Client-side support |
| Alarm delay insertion | Support Local Fault alarm delay insertion function and delay time setting |
| Alarm and performance monitoring |
|
| Typical power consumption | ＜130W |
