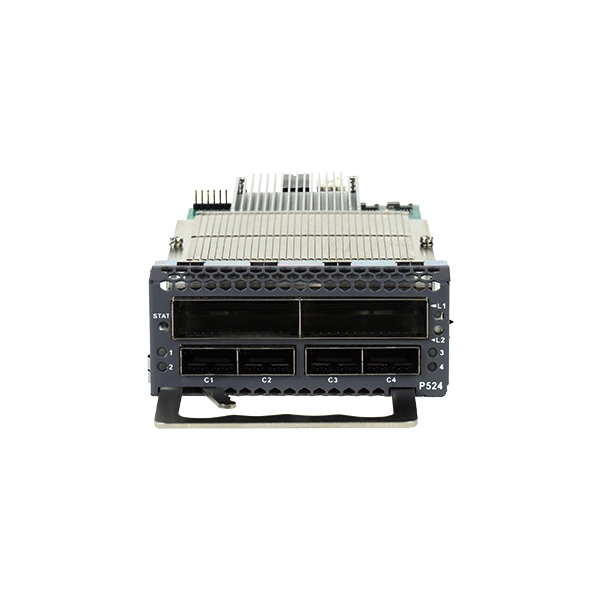

The 2*200G Muxponder service card (P524) launched by Sintai Communication supports mapping 4x100G optical signals received on the client side into 2 OTUC2 signals and interconverting OTUC2 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.
PDF Download
Contact Us
Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km
Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
Suitable for 200G links in existing OTN/DWDM infrastructures
2*200G Muxponder (P524) | |

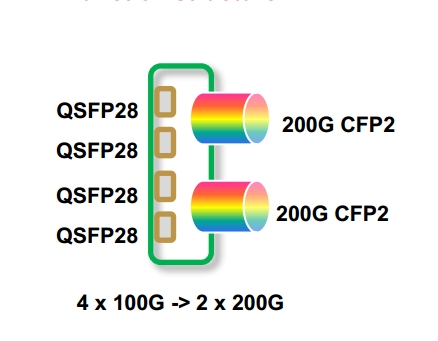

Function | Support 4x100G service signals mapping to 2 OTUC2 signals |
Slot number | 1 slot |
Line side | ● 2 CFP2 ports: adopts 200G & 400G CFP2-DCO modules, hot-pluggable ● Extended C-band/ultra-wide C-band, supports Flexible Grid, 6.25GHz slice ● Support light-emitting power adjustable ● Support 100G/200G rate adjustable ● Support single fiber bidirectional transmission (optional) |
Client side | Support 4 QSFP28 modules, hot-pluggable |
OTN function | ● Frame format and overhead handling using ITU-T G709 recommendations ● ODUk (k=4, C2) layer: support for PM and other functions. ● OTUk (k=4, C2) layer: support for SM functions |
Support services | 100GE, 100GE FlexE(Unware), OTU4 |
Time delay measurement | Support line-side online delay measurement based on ODU layer |
Loopback | Support line side and client-side loopbacks |
LLDP | Receive mode only(when the service type is Ethernet) |
ALS | Client side support (when the service type is Ethernet) |
Alarm delay insertion | Support Local Fault alarm delay insertion and delay time setting |
Performance monitoring and alarm monitoring |
|
