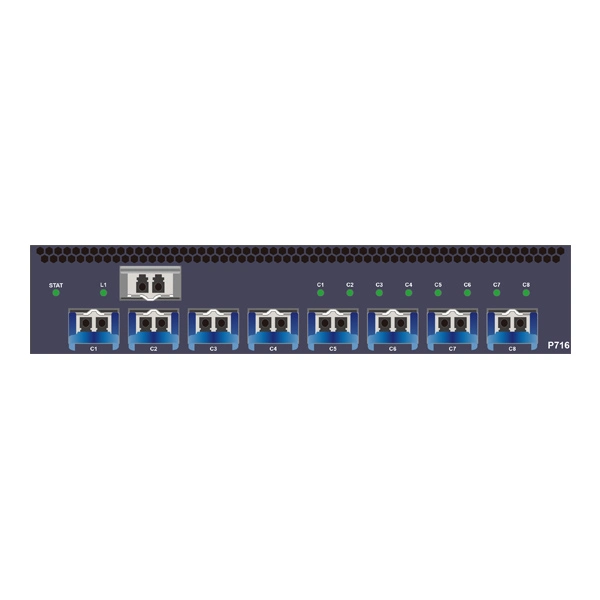

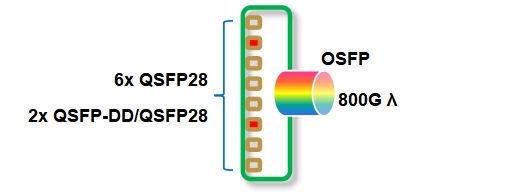

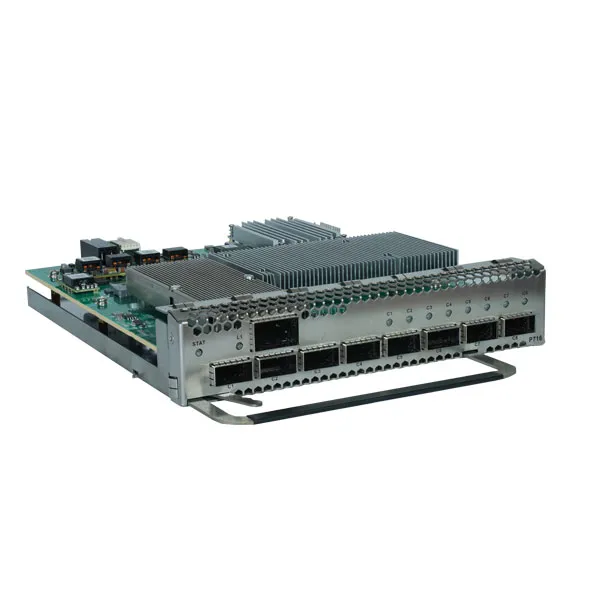

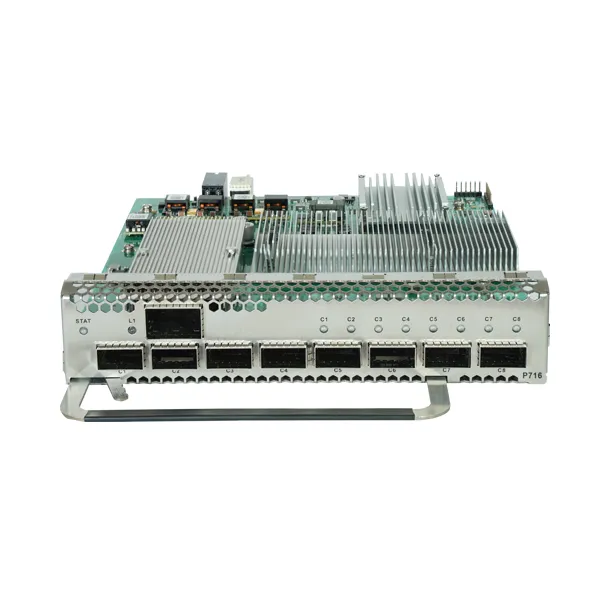

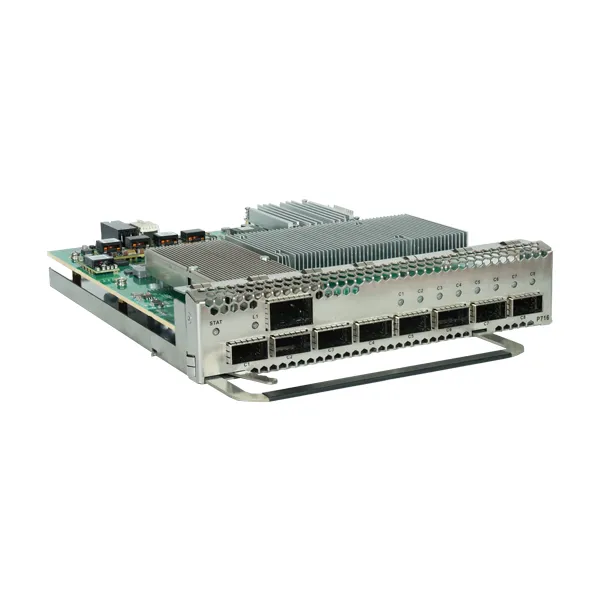

The 800G Muxponder service board (P716) launched by Sintai Communication carries multiple 100GbE and 400GbE services through one 800G wavelength and supports line rates from 400Gbit/s to 800Gbit/s. The line-side uses standard 800G OSFP pluggable coherent optical modules to provide a large-capacity, high-performance, cost-effective optical transmission solution.
PDF Download
Contact Us
Suitable for metropolitan area network and long-distance network transmission up to 450km
Suitable for large-capacity DCI network transmission in enterprises, campuses, cloud computing, etc.
800G links for existing OTN /DWDM infrastructure
| 800G Muxponder (P716) | |
| Occupied slot | 2 slots |
| Line-side |
|
| Client-side |
|
| Supported service types | 400GbE, 100GbE |
| Loopback | Support inner loop and outer loop on line-side and client-side |
| LLDP | Receive mode only |
| ALS | Client-side support |
| Alarm delay insertion | Support Local Fault alarm delay insertion function and delay time setting |
| Alarm and performance monitoring |
|
| Typical power consumption | ＜120W |
