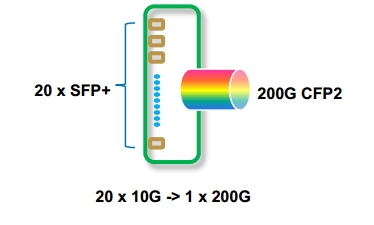

The 20*10G Muxponder service card (P512) launched by Sintai Communication supports mapping the 20x10G optical signal received on the client side to a 1 OTUC2 signal and interconverting the OTUC2 signal with the optical signal of WDM wavelength in compliance with ITU-T standards. The line side adopts pluggable CFP2-DCO to realize ultra-long distance transmission based on advanced technologies such as coherent detection.
PDF Download
Contact Us

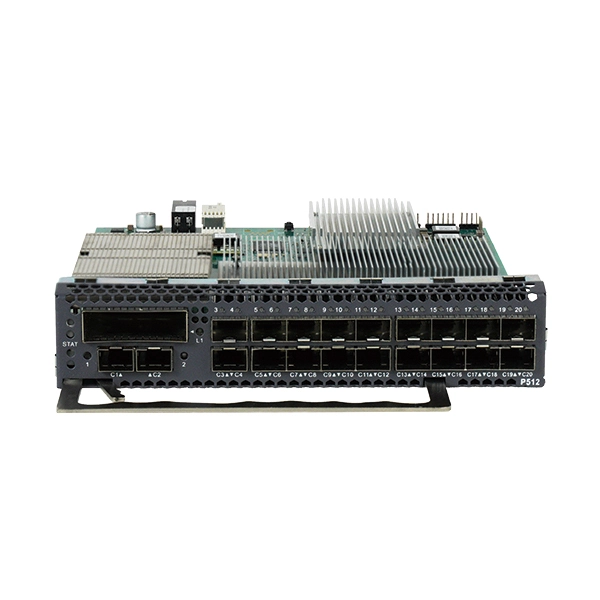

200G Muxponder (P512) | |
Function | Support 20x10G service signals mapping to 1 OTUC2 signal |
Slot number | 2 slots |
Line side | ● 1 CFP2 ports: adopts 200G & 400G CFP2-DCO modules, hot-pluggable ● Extended C-band/ultra-wide C-band, supports Flexible Grid, 6.25GHz slice. ● Support light-emitting power adjustable ● Support 100G/200G rate adjustable Support single fiber bidirectional transmission (optional) |
Client side | Support 20 SFP+ modules, hot-pluggable |
OTN function | ● Frame format and overhead handling using ITU-T G709 recommendations ● ODUk (k=2, 2e, 4, C2) layer: support PM and other functions ● OTUk (k=2, 2e, 4, C2) layer: support SM functions |
Support service types | 10GE, 25GE, STM-64, 10GE_WAN, FC800, FC1600, FC3200, OTU2, OTU2e |
Time delay measurement | Support line-side online delay measurement based on ODU layer |
Loop back | Support line side and client side loopbacks |
LLDP | Receive mode only(when the service type is Ethernet) |
ALS | Client side support (when the service type is Ethernet) |
Performance monitoring and alarm monitoring |
|
